🔧Uboot Recovery for Windows

Uboot Recovery works for the following use cases:

1. If your Spider router is stuck on a solid green light.

2. If your Spider router is not showing an ethernet connection on laptop/PC.

3. If your Spider router is not showing SpiderVPN (2.4G)/(5.8G) Wi-Fi signals.

4. If the ethernet connection on laptop/PC keeps connecting and disconnecting.

5. If you're not able to access the 10.11.0.1 page.

How to Uboot Recover your Spider Router:

Step 1

Head over to the latest download

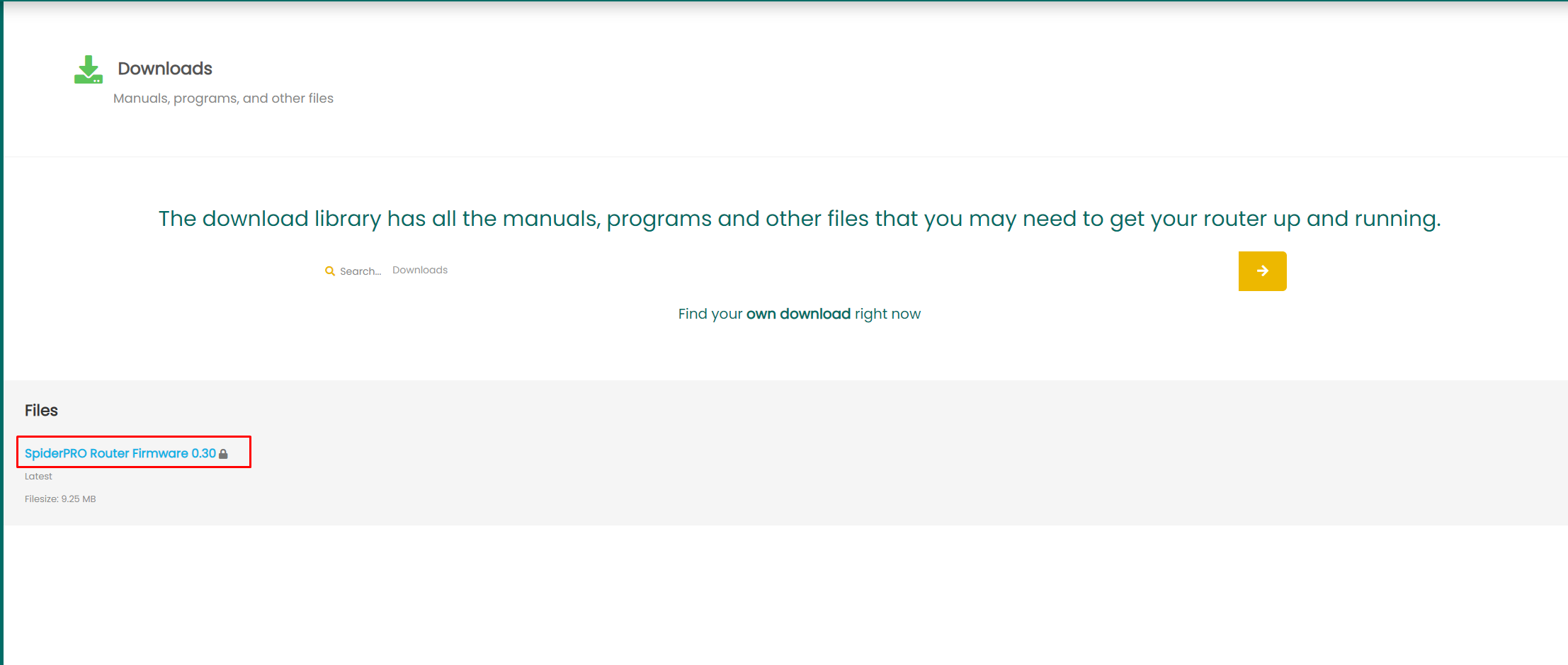

Select the correct firmware according to your router. Either Latest SpiderLite Router Firmware or Latest SpiderPRO Router Firmware. Clicking on one of those two options will take you to our downloads page where you can download the firmware file by clicking on it (marked red in the picture below)

Step 2

Disconnect your laptop/PC from the ISP internet.

Step 3

Connect ethernet cable from laptop/PC’s LAN port to the First Yellow LAN port on the Spider Router.

Step 4

Remove the WAN cable from the Blue port on the Spider Router.

Step 5

Now you must only have the Spider router connected to your laptop/PC.

Step 6

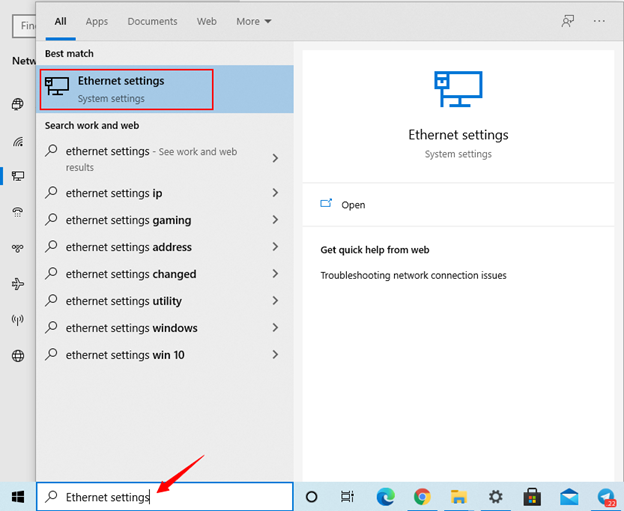

Press the Window Key and type “Ethernet settings” and select the first result.

Step 7

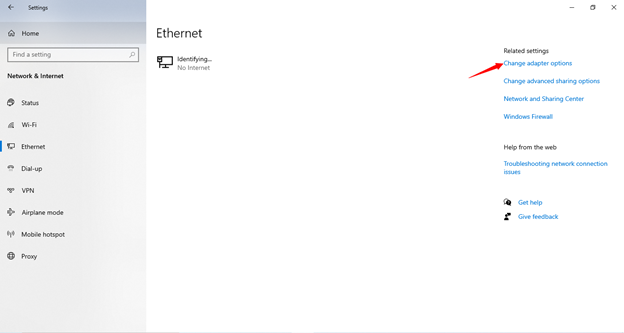

Click on Change adapter options.

Step 8

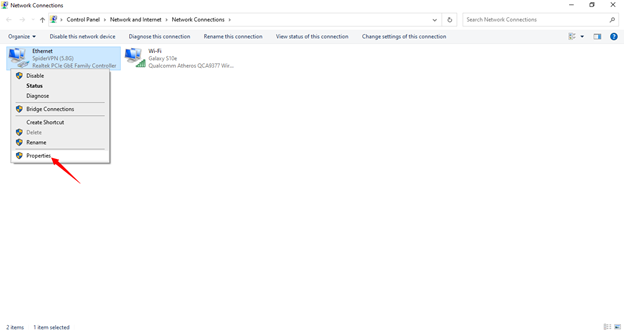

Right click on Ethernet and select Properties.

Step 9

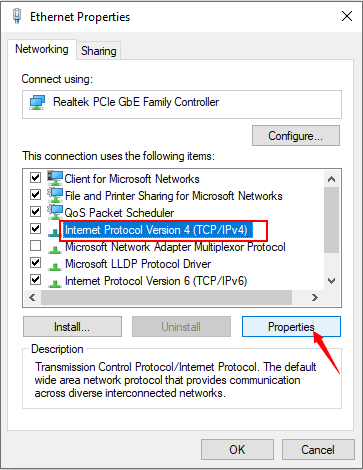

Click once on “Internet Protocol Version 4 (TCP/IPv4), and then click on Properties.

Step 10

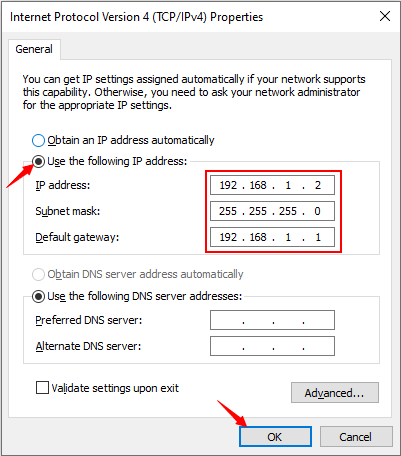

Click on “Use the following IP address”, then enter the details as shown. Finally click on Ok.

Step 11

Remove the power cable from your Spider Router.

Step 12

Press and keep holding the reset button on the router then Connect the power cable to the router. Hold the reset button for 5-10 seconds more and then release the reset button.

Step 13

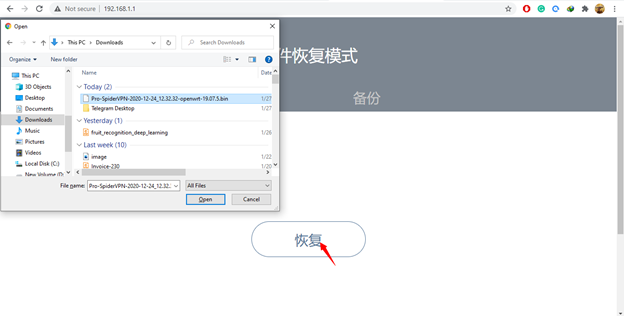

Wait for the Spider Router to boot up again. Open any browser and navigate to 192.168.1.1. Click on the Chinese Icon. Browse and select your downloaded file and click on Open.

Step 14

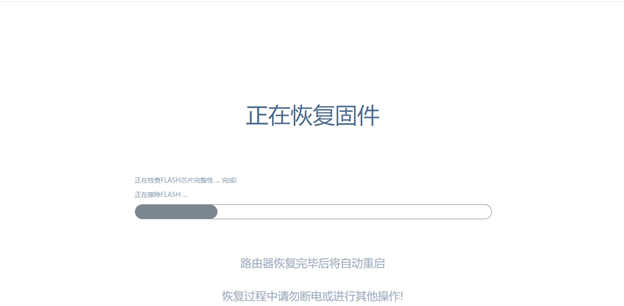

Wait for the firmware to be flashed.

Step 15

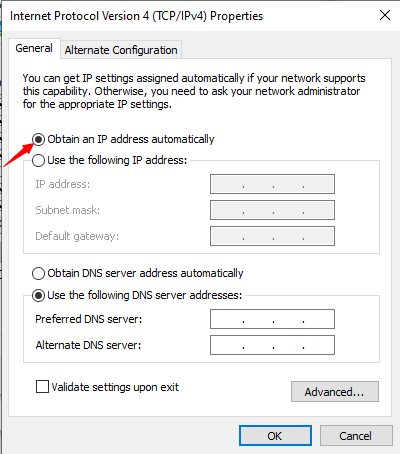

Wait 4-5 minutes. After the firmware is flashed, go back to settings and click “Obtain an IP address automatically” and click on Ok.

Step 16

Connect the ethernet cable from your ISP router to Blue WAN port on Spider Router.

Step 17

Navigate to 10.11.0.1/activation.php and activate router with client area login details and you’re done!

​

​
