# SpiderConnect Lite Router Technical Specs

#### SpiderConnect Lite Router Tech Specifications are listed below.

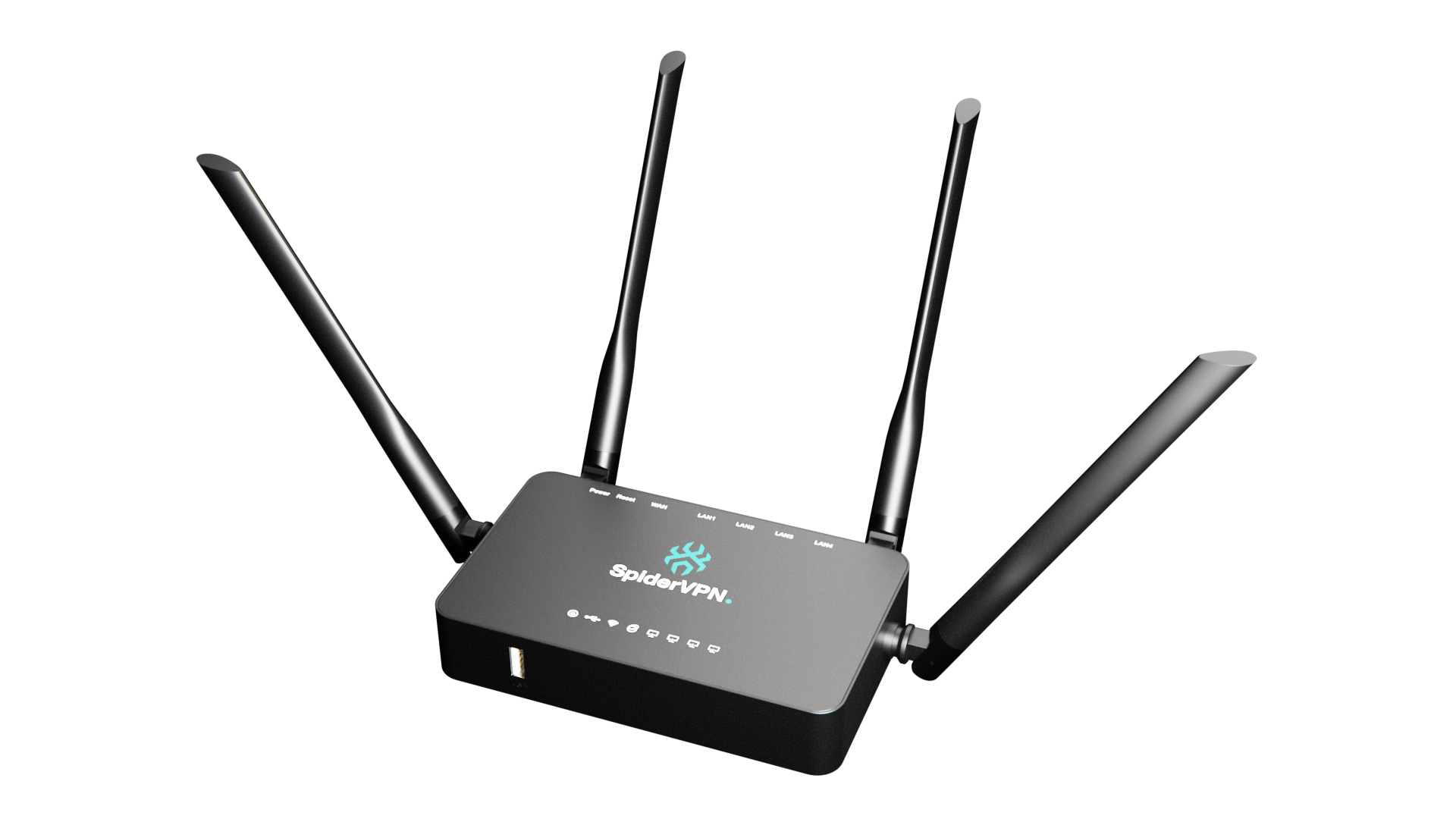

![](https://1379672518-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-MTjEk7yxt7Io1b7-ug6%2F-MTuJs5Ndpq1BOL1tjIp%2F-MTuK8kXue31t8KyCMlg%2Frouter5apha.png?alt=media\&token=169f5a99-3cc0-4434-86aa-29a8a5ef67db)

### Overview

The MT7620N router-on-a-chip includes a 580 MHz MIPS 24kc CPU single-core, a 5-port 10/100 Mbps switch, and two RGMII. The embedded high-performance CPU can process advanced applications effortlessly, such as routing, security, and VoIP.

The MT7620 also includes a selection of interfaces to support a variety of applications, such as a USB port for accessing external storage.

### Features

* Embedded MIPS24KEc (580 MHz) with 64 KB ICache and 32 KB D-Cache
* 2T2R 2.4 GHz with 300 Mbps data rate
* 20/40 MHz channel bandwidth
* Hardware NAT with IPv6 and 2 Gbps wired speed
* 16 Multiple BSSID
* QoS: WMM, WMM-PS
